X-5 XRF Analyzer -SciAps

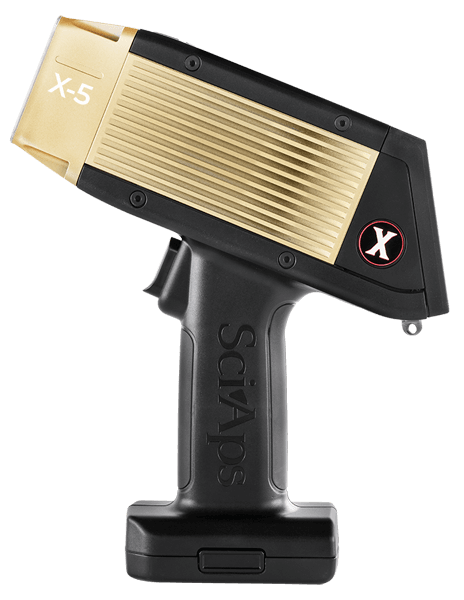

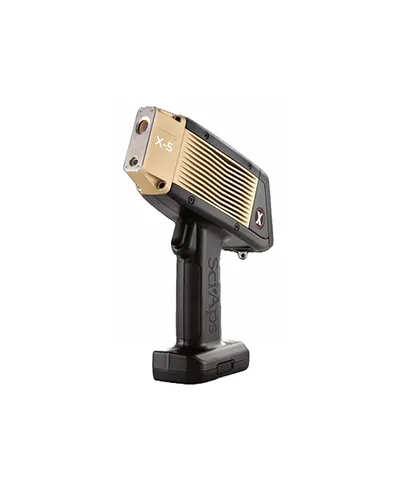

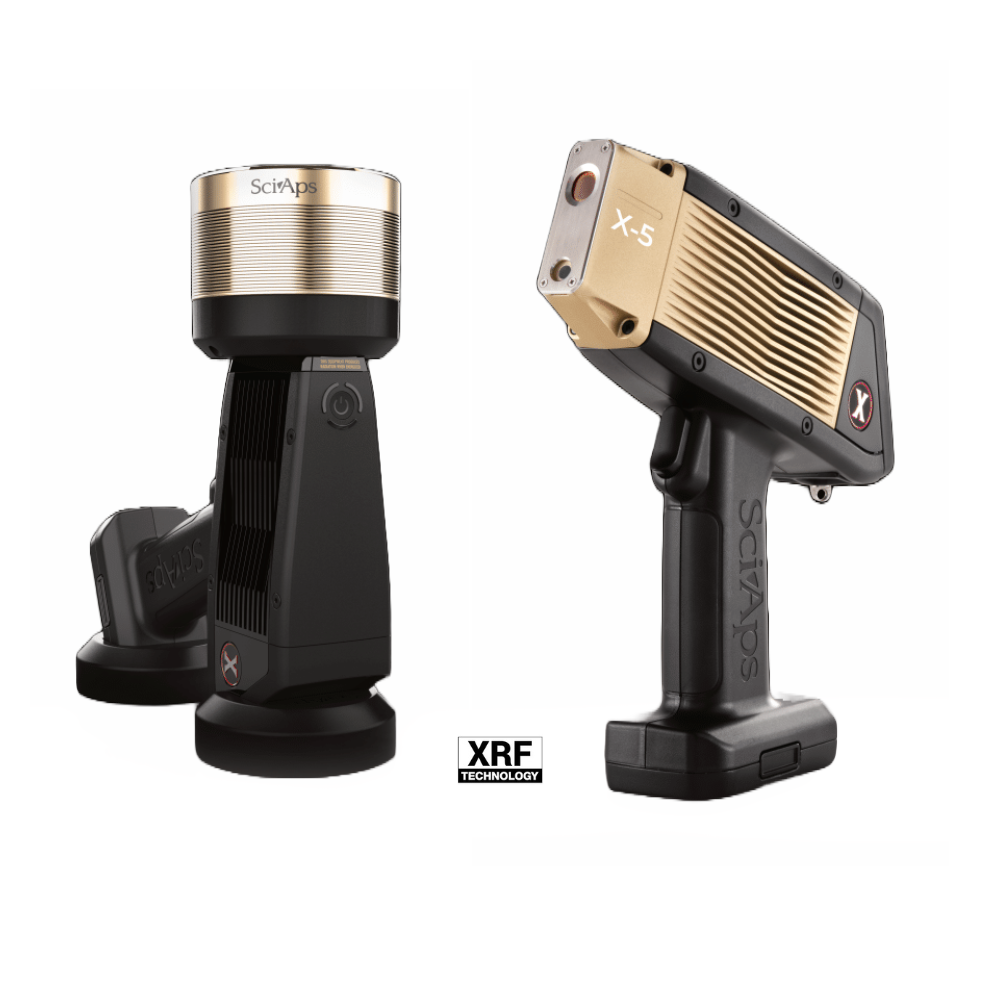

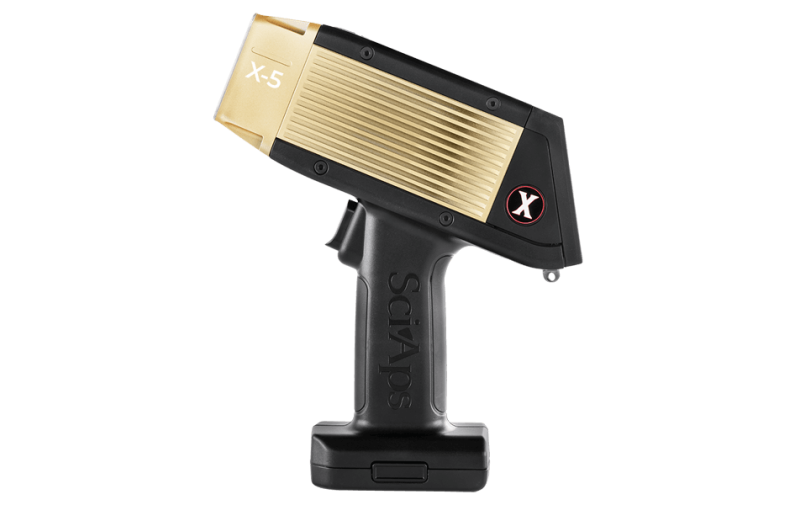

SciAps X Series: Speed and precision, beautifully packaged





SciAps X Series is the world’s lightest, smallest, fastest, high-precision family of XRF analyzers, under 3 lbs. with improved heat dissipation and new user interface. Built on Android OS with Wi-Fi, Bluetooth, GPS and USB, you can manage your data and fleet anywhere, print or email results, and connect to virtually any information management system for seamless test data and reports. And visibility? An integrated camera with video for sample viewing is included with all models, and the latest smartphone display provides easy viewing in all lighting conditions.









All internal electronics now use less power and operate at higher temperatures—no drift or shutdown.







Redesigned heat sinking—can now operate continuously up to 110F (43C) ambient temperatures







New internal circuit boards







New housing and metal components







Up-to-date software, user interface, and full recalibration







Same advanced X-ray tube as other X models







May be factory calibrated with fundamental parameters, Compton Normalization (EPA Method 6200), or user-defined empirical calibrations.

The SciAps X-5 is an excellent choice for conducting basic analysis of transition and heavy metals. Designed for users who do not require measurements of Mg, Al, Si, S, or P in alloys or other materials.

For these users, we’ve re-engineered this classic technology and equipped it with more features for many applications at a great value.

‍Alloy, Scrap: For many NDT/PMI jobs that require verification of low alloy, Cr/Mo steels, stainless and corrosion resistant alloys, the X-5 often delivers excellent performance. Alloy applications include sorting stainless steels, high temp alloys and red metals.

‍And more: The X-5 is also available for precious metals, RoHS, soil, mining, car catalysts, industrial lead paint and other user-customizable applications.






Weight

2.98 lbs. (1.35 kg) with battery









Excitation Source

4 W, 40 kV Rh anode X-ray tube









Avaliable Apps

Precious Metals, RoHS, Soil, Mining,
Car Catalysts









Dimensions

8.5 x 9.5 x 2.4 inches









Detector

7 mm2 SDD, Silicon Drift Detector, (active area), 170 eV resolution FWHM at 5.95 Mn K-alpha line









X-Ray Filtering

Single primary beam filter.









Display

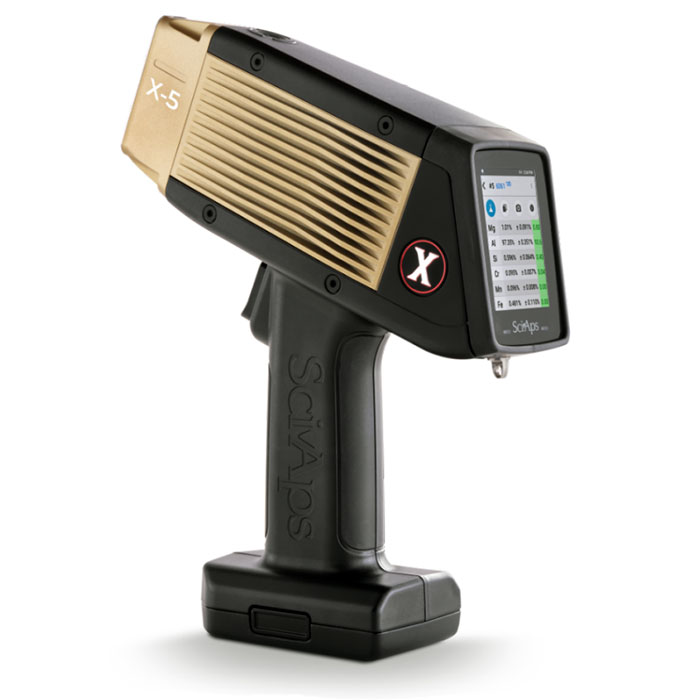

2.7-inch color capacitive touchscreen, 400 MHz Qualcomm Adreno 306 2D/3D graphics accelerator. Rear-facing display for easy results viewing, readable in all conditions.









Processing Electronics

1.2GHz ARM Cortex-A53 quad-core, 64/32-bit. RAM: 2GB LPDDR3. Storage: 16GB eMMC.









Elements

24 elements standard (application dependent), additional elements may be added upon user request: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Ta, Hf, Re, Se, Au, Pb, Bi, Zr, Mo, Pd, Ag, Cd, Sn, and Sb.









Power

On-board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.









Pulse Processor

12 bit with digitization rate of 80 MSPS 8K channel MCA USB 2.0 for high-speed data transfer to host processor. Digital filtering implemented in FPGA for high throughput pulse processing 20 nS – 24 uS peaking time.









Calibration

Fundamental parameters.









Connectivity

Wi-Fi, Bluetooth, USB connectivity to most devices, including SciAps Profile Builder software for PC or tablet. SciAps Cloud data management options available.









Environmental Temperature Range

10 F to 130 F at 25% duty cycle









Sample Viewing

Internal high-resolution camera for sample viewing and targeting for welds, etc. Second macro-camera for photo documentation, reading and storing 2D/3D barcodes and QR codes.









Security

Password protected usage (user level) and internal settings (admin).









Regulatory

CE, RoHS, USFDA registered, Canada RED Act.
