Waste Radiator Recycling Line (System)

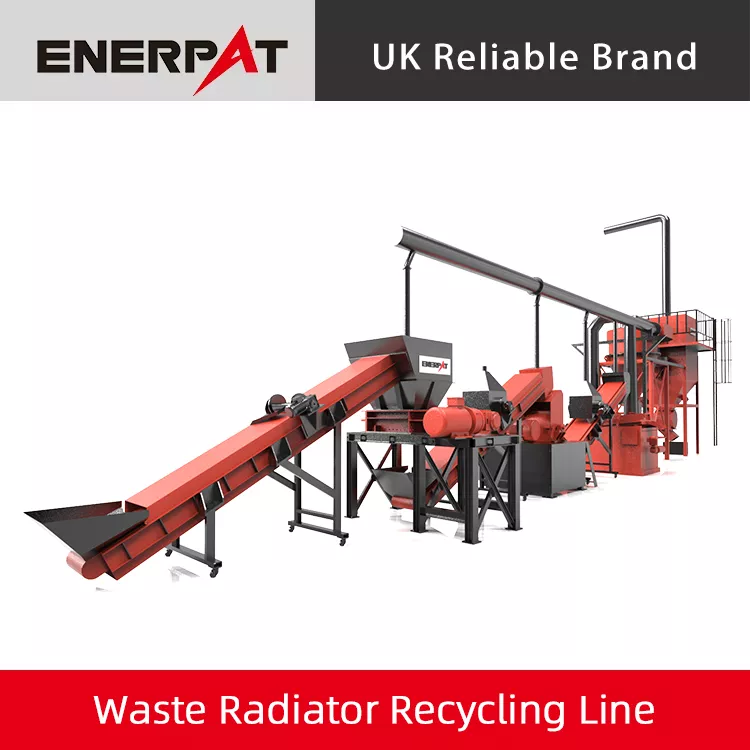

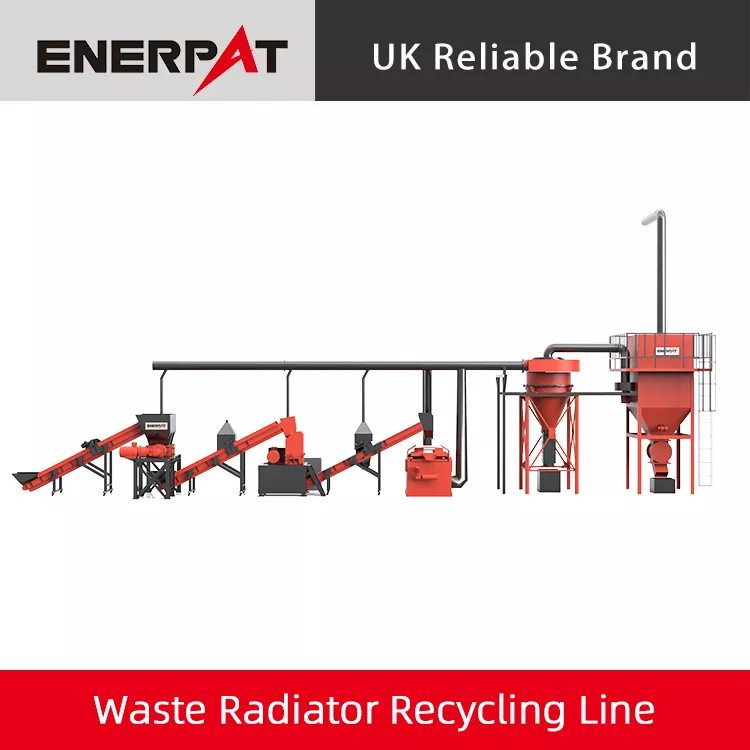

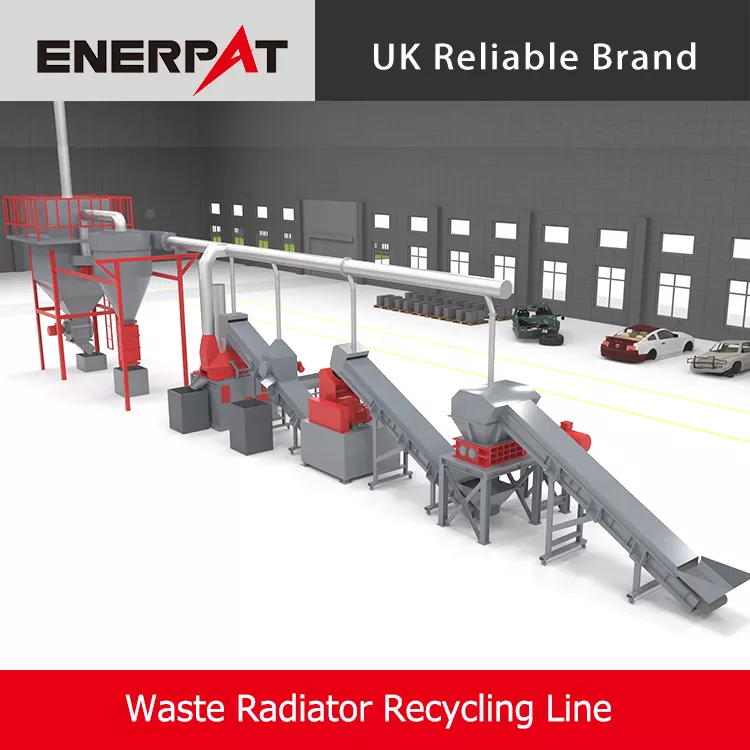

Enerpat’s waste radiator recycling line uses a modular layout. The line includes a chain conveyor, dual shaft shredder, hammer mill, magnetic separator, air separator and pulse dust collection system. All units are enclosed and fitted with dust extraction, keeping the whole recycling process clean and pollution free.






Processing Concept

Discarded radiators go into the shredder first, where they are cut into small even pieces. A magnetic separator pulls out the iron. An air separator then splits copper from aluminum, allowing the metals to be reused. Iron recovery >99 percent, copper recovery >99 percent, aluminum recovery >98 percent.





Product Applications





End Products







Product Details




Steel Chain Feeding Conveyor









Rugged steel chain conveyor belt delivers stable high strength performance for radiator transfer

Direct motor drive turns the conveyor shaft for higher efficiency

Linked to the PLC cabinet so belt speed can be varied in real time to match hammer mill load







Two Shafts Shredder









Shreds radiators into smaller pieces

Fitted with parts from leading brands such as SIEMENS motors, BONENG gearboxes, SCHNEIDER electrics and SKF bearings

Cutting knives use German grade steel like Hardox or Dillinger







Hammer Mill









Heavy duty cutter shafts are protected with HARDOX 500 wear plate

The welded crushing chamber receives full stress relief annealing, followed by CNC machining and line boring, so the unit can run under continuous heavy load

Internal sensors detect uncrushable objects and tell the crusher to eject them automatically

The screen slides on rails; loosen eight screws and pull it out with a forklift to swap it in about two minutes

A hydraulic system makes hammer and pin changes quick and easy

Special springs mounted under the frame cut vibration while the machine is working







Vibration Table









Disperse the end products from Hammer Mill by vibration

Send the materials to the following Drum Magnetic Separator Evenly







Drum Magnetic Separator









Separate the steel from the materials

Copper and Aluminum go for the following Air Separator









Air Separator









The airflow separator sends wind across the material; the screen vibrates at a fixed angle, and the deflected flow cleanly splits copper from aluminum.







Dust Collection System









Auto-pulse dust collection efficiently captures dust from the entire line.











Technical Data Sheet








Model
ERS-2000
ERS-3500


Motor Power
122 KW
220 KW


Material
Radiators
Radiators


Capacity
1.5-2.0 tons per hour
2.5-3.5 tons per hour


Whole Line Size
19x7x6 meter
22x9x6 meter
