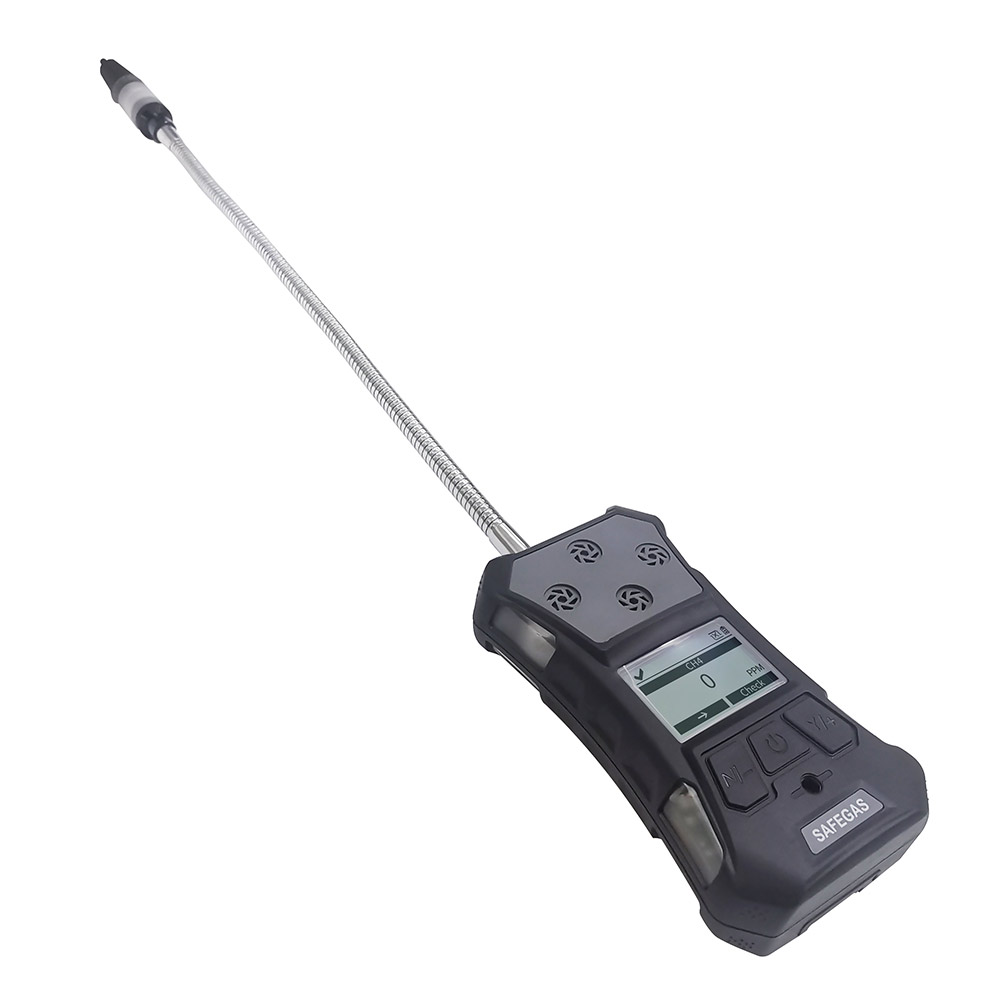

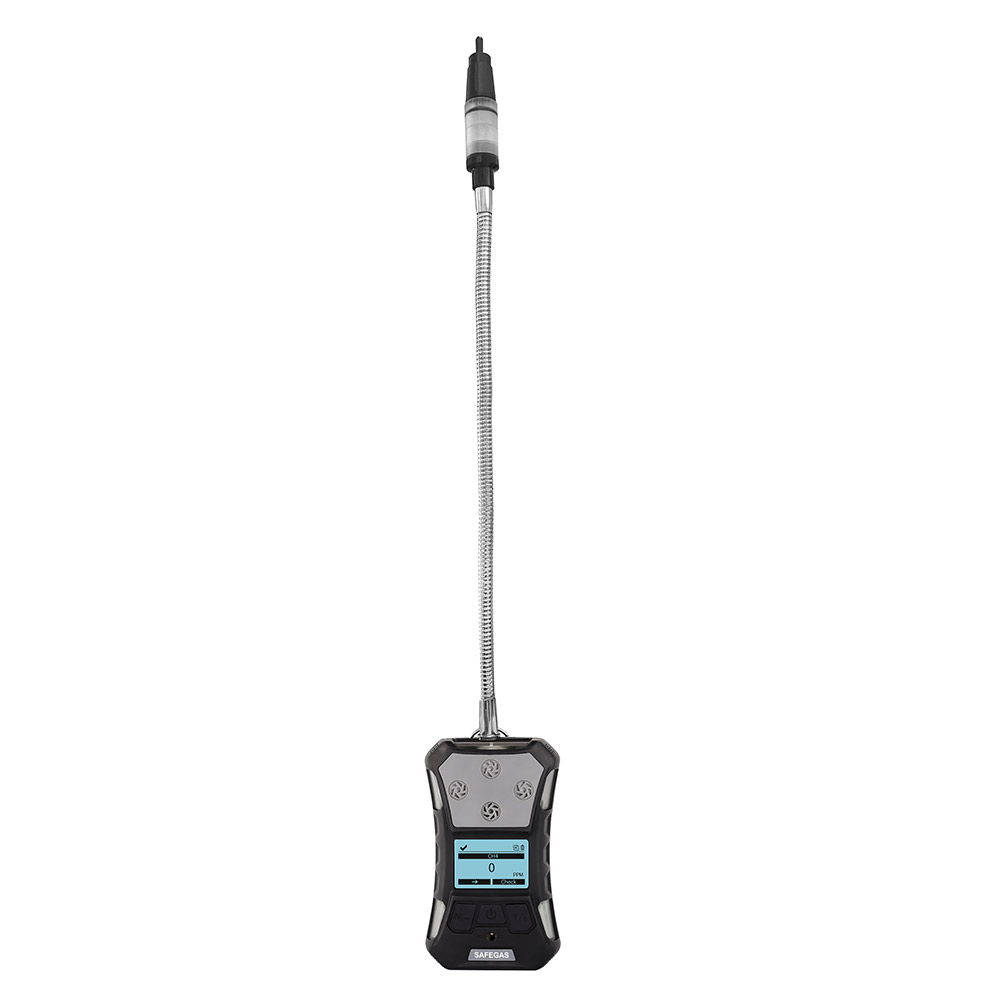

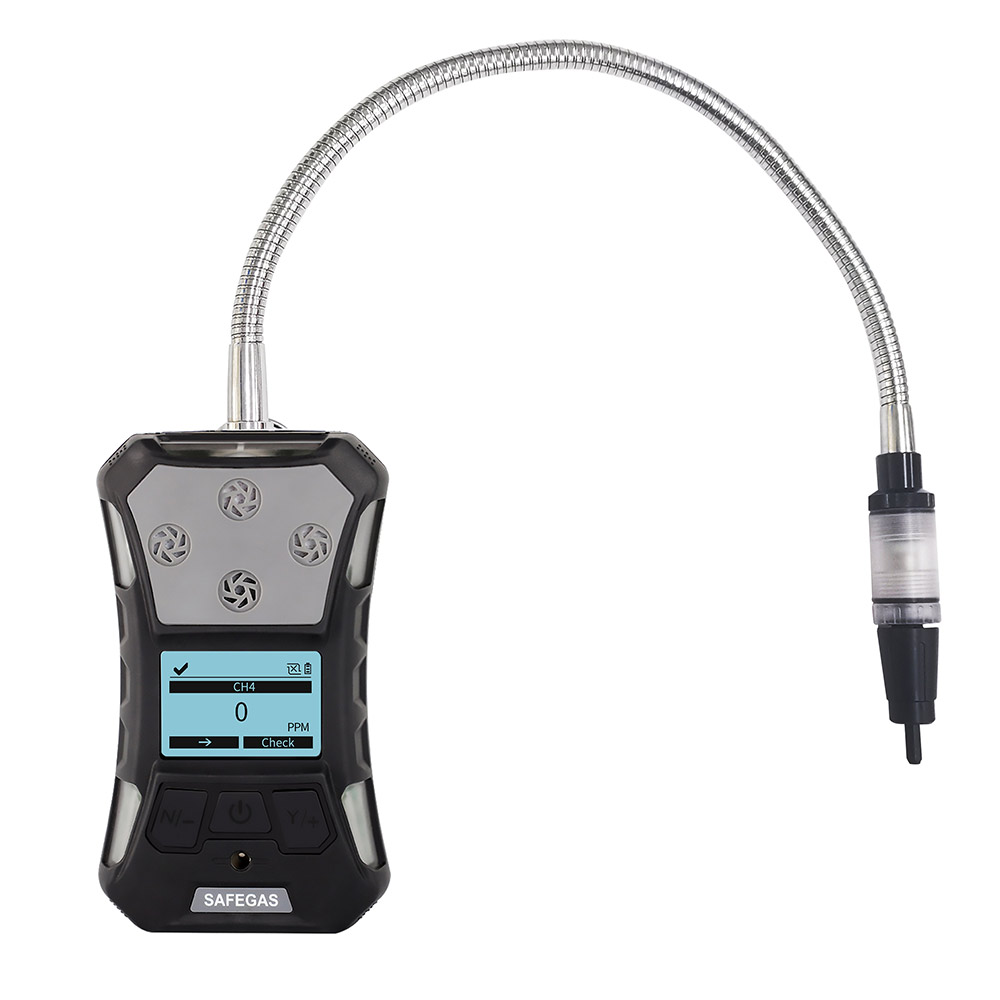

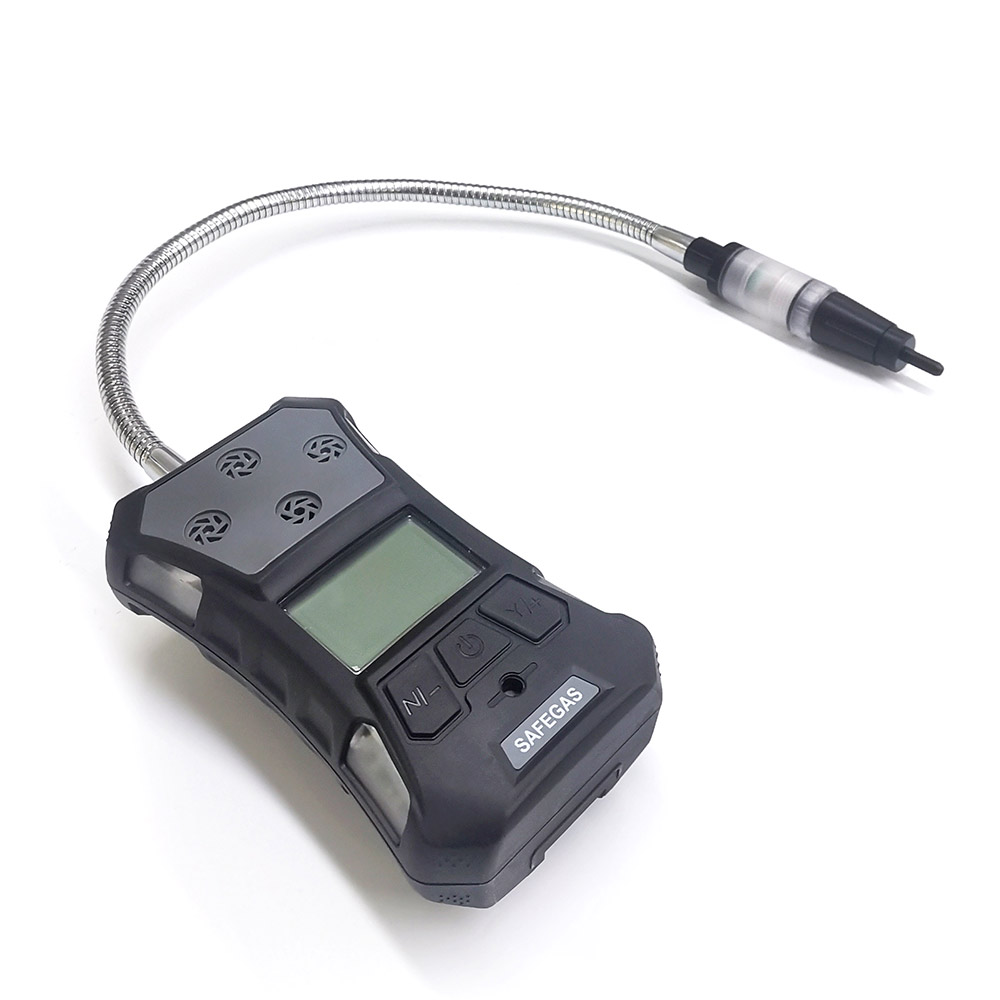

SKY3000-SP Gas Detector with Multiple Gases up to 6 in 1-Safe Gas
The SKY3000-SP series offers technicians and workers a single instrument that can be used throughout the gas distribution and transmission pipelines for all measurements needed for leak testing, and confined space entry. Bright LED alarm lights illuminate as gas levels increase, and audible alarms are activated at preset levels should they be programmed.
Designed for the gas industry, the SK Y3000-SP are multi-application instruments, satisfying all the needs of service technicians within a single unit. With different modes of operation and internal p ump, the SKY3000-SP is the most versatile instrument available for working with gas.
Product advantage
Optional measures up to 4 gases, (O2, CH4, CO, H2S) simultaneously with audible visual alarms, datalogging, and min/max values.
Gas leak detection measures methane in three different distinct ranges (ppm / LEL / %Volume). Auto ranging between all three ranges, audible, visual, and gieger alarms, and ergonomical design allows for easy one-handed operation.
With flexible probe for testing undrerground leaks, measures gas beginning in the LEL range and autoranges to % Volume. Barhole probe included with instrument.
Rugged polycarbonate case, sealed to IP67
One press to restore factory settings
Large graphical display can rotate 180°
Support backlight function the backlight time can be manually set
Low power consumption, long stand by time
Support firmware upgrade remotely
Product configuration
Standard accessories：
- Gas detector 1 piece
- 12V/1A DC power adapter 1 piece USB cable 1 piece
- User manual 1 piece
- Warranty card 1 piece
- Flexible probe 1 piece
- Aluminum suitcase 1 piece
| Gas Detected | O2、CO、H2S、CH4 is the standard gas combine, other combine can be specified. |
| Detection Principle | Electrochemical (O2, CO, H2S),?Catalytic combustion (LEL)? |
| Measure range | CO: 0-1000ppm, H2S: 0-100ppm, O2: 0-30%VOL, CH4: 0-10000ppm, 0-100%LEL, 0-100%VOL |
| Resolution | Specified according to application. |
| Response time | ≤30 seconds |
| Precision | ≤±1-5% F.S except for special gases |
| Language | Chinese/English/Polish (More language can be customized) |
| Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM, mg/m3, %LEL, % VOL |
| Display | LCD (160 x96) ,180° rotate. |
| Backlight | Turned on automatically when alarming, the backlight time can be manually set. |
| Data record | 100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to P C no need software. |
| Alarm | 95dB@30cm buzzer alarm, flashing red LED alarm and vibration al arm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours. |
| Explosion-proof grade | IECEX/ATEX（II IG Ex ia IIC T4CNEX: Ex ia IIC T4 Ga |
| Certification(EU regulations) | 2004/108/EC（EMC） 2004/34/UE (ATEX）（ATEX）CE |
| Protection grade | IP67 |
| Working temperature | -20℃~+50℃ |
| Humidity | 10～90%RH（no condensation） |
| Environmental pressure | 86～106Kpa |
| Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight | 365g (including battery, belt clip and filter) |
| Detected gas | Range | Resolution |
| Oxygen（O2） | 0-25%/0-30%VOL | 0.1%VOL |
| Carbon monoxide CO） | 0-1000/0-2000ppm | 1ppm |
| Hydrogen sulfide（H2S） | 0-100ppm | 1ppm |
| Methane（CH4） | 0-10,000ppm | 1ppm |
| Methane（CH4） | 0-100% LEL | 1%LEL |
| Methane（CH4） | 0-100% Volume | 1%LEL |
