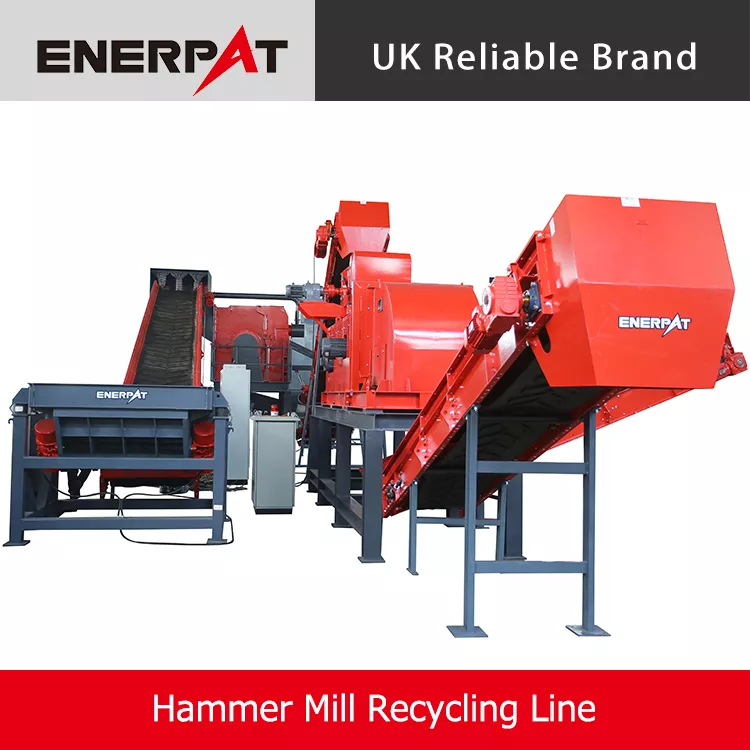

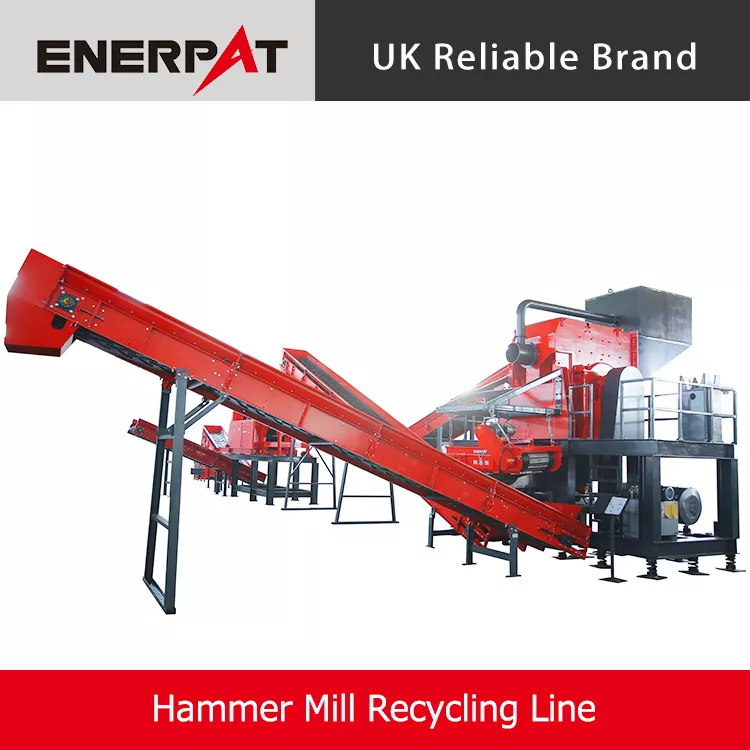

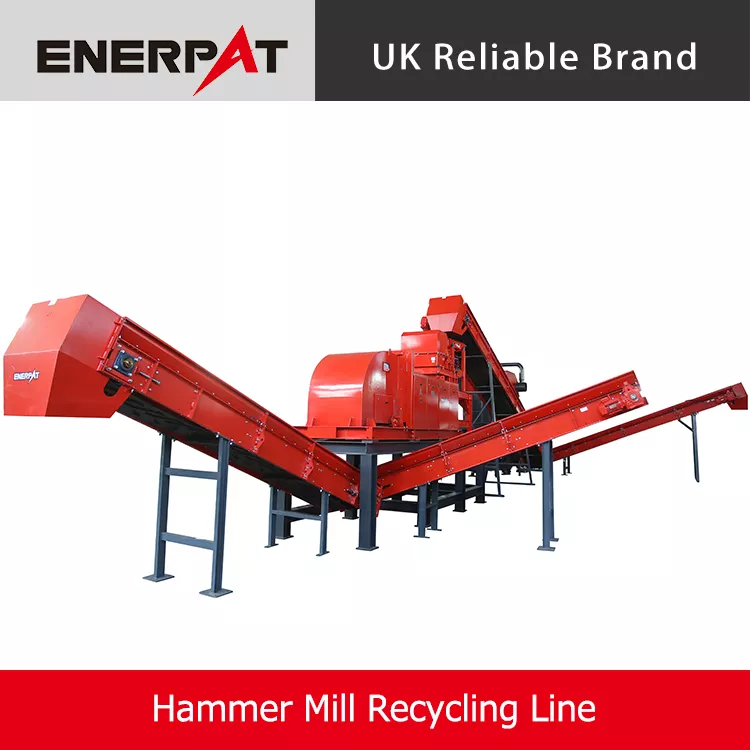

Hammer Mill Recycling Line
ENERPAT’s hammer mill line is built on a modular platform. Each machine runs independently while cooperating smoothly with the next, giving the system flexible control, smart design and a compact footprint. The layout can be tailored to the plant floor and production goals.

Scrap metal first enters the mill where it is broken into smaller pieces. The material then travels over a vibrating feeder that screens it and feeds it evenly to a magnetic separator, which removes ferrous metal. The remaining stream moves to an eddy current separator that splits nonferrous metal from nonmetal. The line delivers clean ferrous, nonferrous and residue outputs, with ferrous purity above 98 percent.



Product Applications



End Products







Product Details




Steel Chain Feeding Conveyor









The steel chain belt stays steady and handles heavy scrap metal with ease

The motor drives the shaft directly for higher efficiency

Linked to the PLC panel, the belt speed adjusts to the hammer mill’s workload







Hammer Mill









Rugged cutter shafts are shielded by HARDOX 500 wear plates

After the crushing chamber is welded it undergoes full stress-relief annealing, then is finish-machined and bored on CNC equipment to ensure reliable long-term service under heavy load

Built-in sensors spot uncrushable objects and tell the crusher to eject them automatically

The screen runs on rails. Loosen eight screws, pull it out with a forklift, and swap screens in about two minutes

A hydraulic pack lets you change hammers and pins quickly and safely

Special springs under the crusher greatly cut operating vibration







Vibration Table









Use vibration to disperse the hammer mill’s final product

Feed the material evenly into the next drum magnetic separator







Drum Magnetic Separator









Separate the steel from the end products







Eddy Current Separator









Separates metal from non-metal materials

Eccentric magnetic pole design keeps separation rate and output high







Dust Collection System









Automatic pulse dust system efficiently captures dust across the entire line












Technical Data Sheet








Model
MSE-H600
MSE-H800
MSE-H1000
MSE-H1600
MSE-H2000


Motor Power
150 KW
180 KW
220 KW
500 KW
700 KW


Feeding Hopper Size
1023x674 mm
1223×674 mm
1526×983 mm
3064×1596 mm
4047×2141 mm


Shaft Diameter
185mm
185mm
185mm
260mm
350mm


Rotor Diameter
850mm
860mm
870mm
1030mm
1240mm


Shredding Chamber Length
580mm
825mm
1090mm
1596 mm
2118mm


Hammer Thickness
65mm
65mm
65mm
94mm
96mm


Hammer Quantity
8pcs
12pcs
16pcs
22pcs
12pcs


Rotor Speed
480rpm
480rpm
480rpm
480rpm
480rpm


Wearing Plate Material
High chrome
High chrome
High chrome
High chrome
High chrome


Wearing Plate Quantity
800kg
1200kg
1.4 tons
2.4 tons
2.6 tons


Machine Size
3414×2900×4532 mm
3414×3139×4532 mm
5500×4800×4919 mm
6800x4800x4925 mm
9199×8880×7300 mm


Machine Weight
14 tons
17 tons
20 tons
28 tons
65 tons
